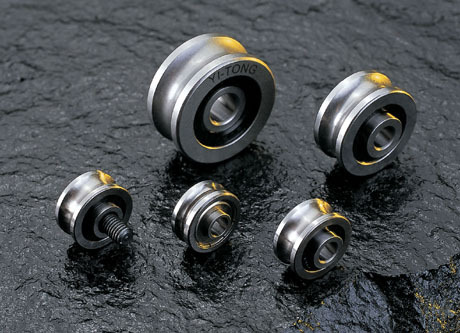

SG35N Track rollers with Gothic arch groove

No.SG35N.2RS
SG35N 2RS apply to high speed linear motion
Double row angular contact ball bearing.
SG35N-2RS bearing used for Embroidery Machine.
SG35N-2RS bearing used for Track Guide system.

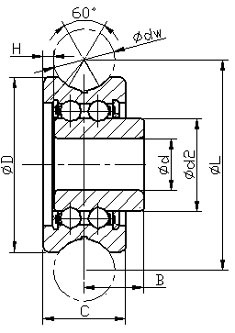

SIZE CODE
SG35N.2RS
dw (mm) (dim. of shaft )
12
d (mm)
12
D (mm)
42
C (mm)
19
B (mm)
12.5
L (mm)
48.93
d2 (mm)
18
H (mm)
1
Cr (KN)
10.5
C0r (KN)
5.8
Limiting Speed (r/min)
7000
Weight (g)
136
Sealing type:
NPP
KDD
Grease:
Lithium Grease
Customized
  • SG35N Track rollers with Gothic arch groove
  • SG35N Track rollers with Gothic arch groove
Description

Track rollers with Gothic arch groove - type SG

The function of series SG rollers is same as the series LFR rollers. But they are mainly used in the flat track and in the condition required compact structure. After rollers are installed to the slider, the shaft will be not or seldom over the roller's side planes.
