No.ODS25

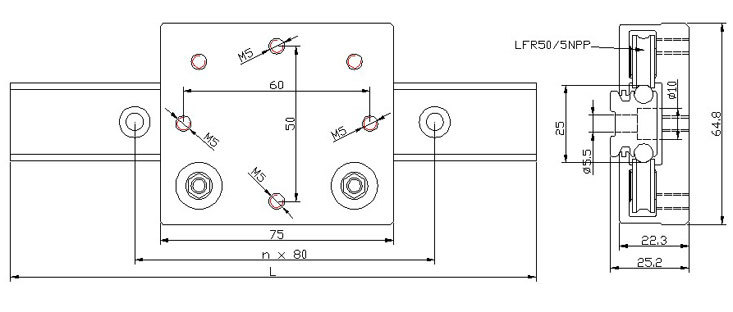

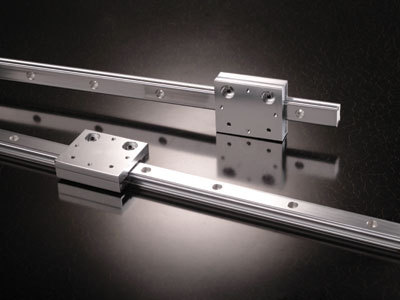

YITONG ODS (Outlay Dual Shafts Guide System) consists of sliding carriage and rails.
The rails include an aluminum body and 2 pieces high precision﹑hardened linear shafts that are inlaid into the aluminum body.
  • ODS25 -consists of sliding carriage and rails.
  • ODS25 -consists of sliding carriage and rails.
Description

YITONG ODS (Outlay Dual Shafts Guide System) consists of sliding carriage and rails.
The rails include an aluminum body and 2 pieces high precision﹑hardened linear shafts that are inlaid into the aluminum body.
The sliding carriage is mounted with four pieces high quality LFR series track rollers, two pieces of them have eccentric functions, and very easy for adjusting the clearance of this system.
ODS have a low coefficient of friction and well performance in high speed and high accelerations.
The guide rails and the carriage block are all drilled with mounting holes, easy for mounting.
The preload of ODS could be adjusted freely to meet various application requirements.
ODS have a long service life. Track rollers are available on stock for customers’ replacement.
Custom drilled services on the rails are also available from YITONG.

  Designation:
       ODS-25-XXXX
       ODS Code of Outlay Dual Shafts Rails
       XX: Width of rail, e.g. 25 means the width 25 mm
       XXXX: Length of rail (mm)
