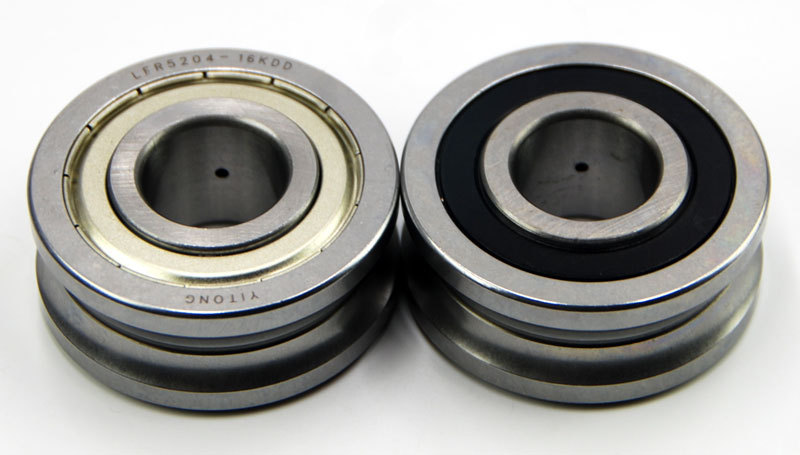

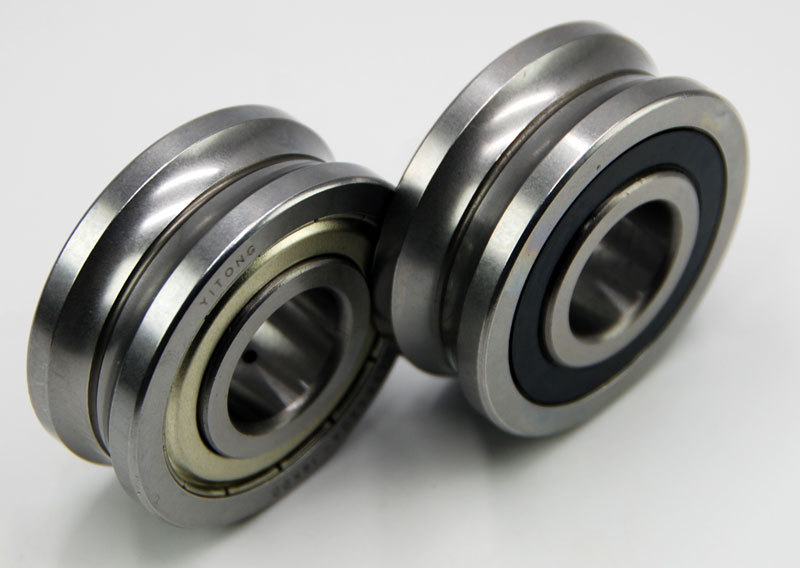

LFR5204-16Track rollers with Gothic arch groove for 16

No.LFR5204NPP-16
Other codes: LFR5204-16-2Z   LFR5204-16ZZ   LFR 5204-16 KDD  LFR5204-16 NPP LFR5204-16-2RS  LFR5204-16-2RS-RB LFR5204-16-2RS-VA
*can be relubricated through a hole in the inner ring.

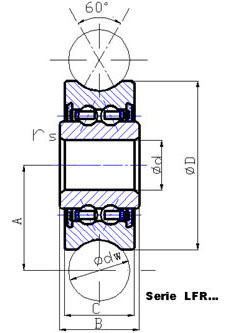

SIZE CODE
5204-16KDD
dw (mm) (dim. of shaft )
16
d (mm)
20
D (mm)
52
C (mm)
20.6
B (mm)
22.6
A (mm)
31.5
rs (mm)
0.6
Cr (KN)
19.6
C0r (KN)
12.6
Limiting Speed (r/min)
10000 (KDD) 4500 (NPP)
Weight (g)
195
Sealing type:
NPP
KDD
Grease:
Lithium Grease
Customized
  • LFR5204-16Track rollers with Gothic arch groove for 16
  • LFR5204-16Track rollers with Gothic arch groove for 16
  • LFR5204-16Track rollers with Gothic arch groove for 16
  • LFR5204-16Track rollers with Gothic arch groove for 16

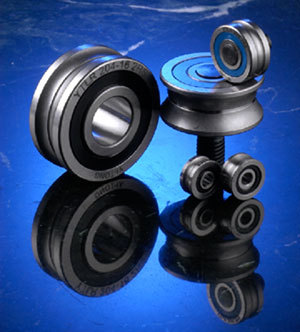

Description
U groove bearing- yoke type track roller  -  linear motion bearing.
•  Series
LFR rollers are the most widely-use and economy product among the linear motion track rollers, and they can suit to the cylindrical track.
•  There are two contact points between the roller and track, so the contact function is favorable.
•  Rollers feature double row angular contact ball bearing in its internal structure design and a thick-walled outer ring, so rollers can accommodate higher loads.
•  Rollers are made of high-quality bearing steel, processed by heat treatment and precision grind, and are filled with a long service life, high-grade and multi-purposes grease. Rollers mount the metal shield (KDD) or rubble seal (NPP) to prevent the dust. YITONG also can provide the rollers with concentric or eccentric pivot. Some types of the rollers can be made from the corrosion resistance stainless steel.

 Characteristics of the guide system that series LFR rollers are applied :

1. High allowable speed, low resistance, long service life
For series LFR rollers, the surface profile of the outer ring is designed as the GOTHIC ARCH.
When rollers running, there are two contact points with an angle 60 degrees between the roller and track. So the friction resistance is low and the load is in equality, thus avoiding the stresses concentration and edge effect caused by the error from installation and manufacture, making the track system has the characteristics of high speed, low energy consumption, long service life and minimum noise level.

2. Easy installation
As rollers assembled the concentric or eccentric pivot, installation can be made convenient. To adjust the eccentric one's eccentricity, these rollers can get the fitting preload.

3. Smooth running, minimum error and lower noise level
YITONG special manufacture equipments of machine and inspection facilities make accuracy in the profile of roller. Mature manufacture techniques and critical inspection procedure make all rollers good in the Kea (radial runout) of outer ring and roundness of working surface, so the guide system in motion is smooth running, minimum error and lower running noise level.
