LFR50/8 N.2Z Track rollers with Gothic arch groove

No.LFR50/8
Other codes:LR36-008 LFR50/8N.2Z
apply to high speed linear motion

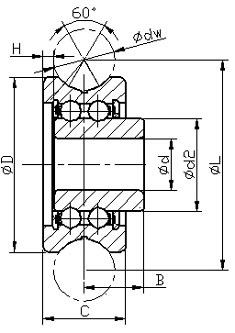

SIZE CODE
LFR50/8 N.2Z
dw (mm) (dim. of shaft )
6
d (mm)
8
D (mm)
24
C (mm)
11
B (mm)
7
L (mm)
28
d2 (mm)
6.9
H (mm)
0
Cr (KN)
2.02
C0r (KN)
0.93
Limiting Speed (r/min)
27000
Weight (g)
8
Sealing type:
NPP
KDD
Grease:
Lithium Grease
Customized
  • LFR50/8 N.2Z Track rollers with Gothic arch groove
  • LFR50/8 N.2Z Track rollers with Gothic arch groove

Description

LFR50/8-6 Linear motion bearing are also known as LFR50/8-6 high speed linear motion,LFR50/8-6 speed guide bearing,LFR50/8-6KDD,LR36-008 BEARING,LFR50/8-6 track roller,LFR50/8-6 U groove bearing

The function of series SG rollers is same as the series LFR rollers. But they are mainly used in the flat track and in the condition required compact structure. After rollers are installed to the slider, the shaft will be not or seldom over the roller's side planes.
